2026 Honda CR-V Hybrid vs. Pilot | Honda Libertyville
Honda Buying Guide

2026 Honda CR-V Hybrid vs. 2026 Honda Pilot: Which Honda SUV Fits a Lake County Family?

  • Updated 08/17/2026
  • Libertyville, IL
  • 10 minute read

Start with one number. A 2026 Pilot with all three rows raised carries 18.6 cu ft behind the third row. A 2026 CR-V Hybrid carries 36.3 cu ft behind its rear seats. The bigger, more expensive, three-row SUV gives you roughly half the everyday cargo space, because that third row eats the trunk. If your third row is up more than a few days a month, the Pilot earns its price. If it is not, the CR-V Hybrid is usually the smarter buy for a Libertyville family.

Browse New Honda SUVs Ask a Product Specialist

All prices on this page are manufacturer's suggested retail price and exclude destination, taxes, title, license, and dealer charges. Destination is listed separately in each table. MSRP figures are informational and are not an offer for sale. Equipment and availability vary.

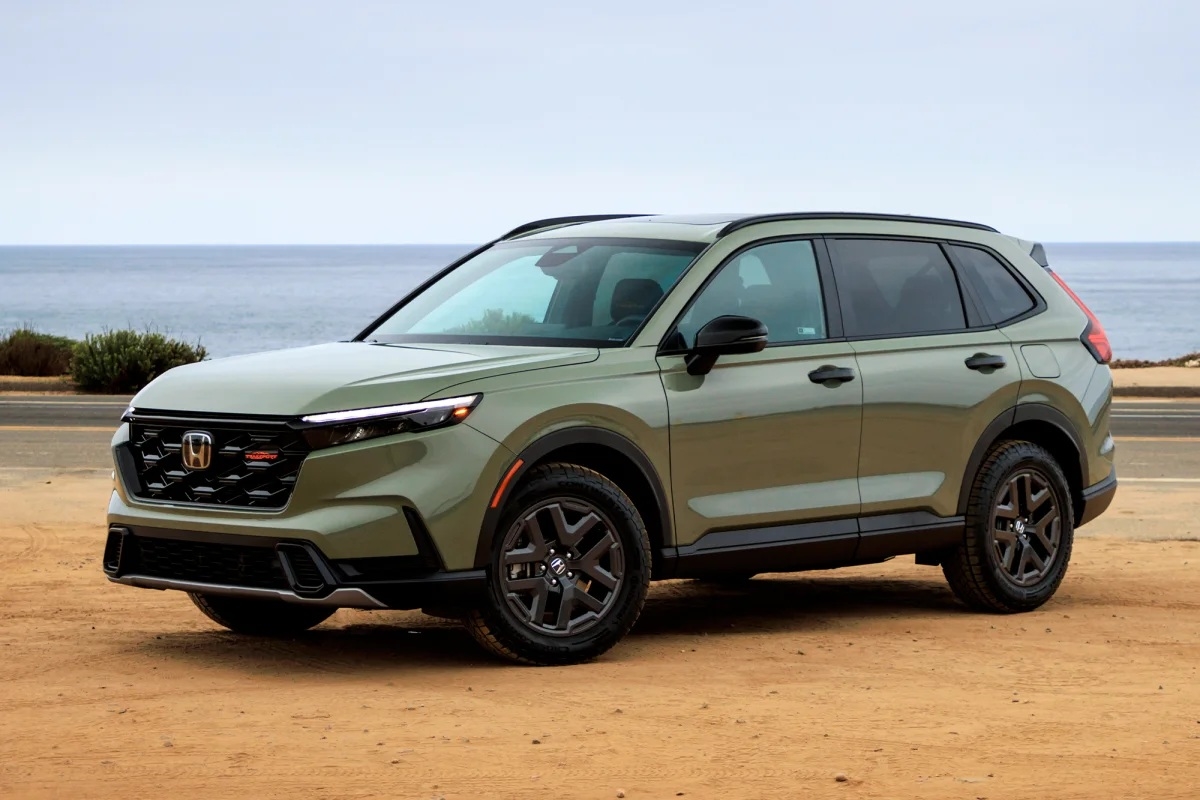

2026 Honda CR-V Sport-L Hybrid in front three-quarter view

The number most three-row shoppers never see

Honda publishes cargo volume in two columns, Standard and Max. Max is measured to the roof with a load floor cleared of everything, including the cargo cover. Every figure on this page uses the Standard column, because that is what your groceries and hockey bags actually live in.

18.6 cu ft Pilot
36.3 cu ft CR-V
$5,269.62 / 5 yrs
Honda Newsroom Specs
Safety Sources Checked
Fuel Math Shown
2026 Model Year
Libertyville, IL

The Short Answer

Two honest recommendations, before any of the detail.

36.3 cu ft CR-V Hybrid, behind the rear seats, everyday configuration
18.6 cu ft Pilot, behind a raised third row, everyday configuration
48.5 cu ft Pilot, third row folded, which is how most Pilots are driven
Choose the CR-V Hybrid if

You carry cargo far more often than you carry a sixth or seventh person

  • You want the deepest usable trunk on a normal Tuesday, not on the two weekends a year you help someone move.
  • You drive Milwaukee Avenue and the Tri-State more than you drive a boat ramp. City mileage is where the hybrid does its best work.
  • You want a lower payment and a lower fuel bill at the same time, and you are willing to give up the third row to get both.
  • You tow nothing heavier than a small utility trailer, or nothing at all.
Choose the Pilot if

You genuinely need seats six through eight, or you tow

  • You run carpool, or you have three kids in car seats, or grandparents ride along regularly. Nothing about a CR-V solves that.
  • You tow. All-wheel-drive Pilots are rated at 5,000 lb. No CR-V comes close.
  • You want the 2026 refresh technology: 12.3-inch touchscreen, Google built-in, power tailgate on every trim.
  • You accept roughly $1,054 more per year in fuel at today's Lake County prices, because the space and capability are worth it to you.

Cargo: The Number That Decides It

This is the whole comparison in one table. Everything else is detail.

Direct answer

With every seat in its normal upright position, a 2026 CR-V Hybrid holds 36.3 cu ft and a 2026 Pilot holds 18.6 cu ft. The three-row SUV has about half the usable trunk. The Pilot only pulls ahead once you fold the third row, at which point it opens up to 48.5 cu ft.

Scroll the table sideways to see every column

Cargo volume, SAE J1100 Standard, 2026 Honda CR-V Hybrid and 2026 Honda Pilot
Configuration CR-V Hybrid Pilot What it means day to day
All seats up 36.3 cu ft 18.6 cu ft Groceries, sports bags, strollers, a Costco run. The CR-V nearly doubles the Pilot here.
Second row up, third row folded 36.3 cu ft 48.5 cu ft The Pilot's real everyday number for most families, since the third row usually lives folded.
Maximum, rear seating folded 71.8 cu ft 87.0 cu ft Dorm move-in, lumber, a bike with both wheels on. The Pilot is the bigger box when it is empty of people.

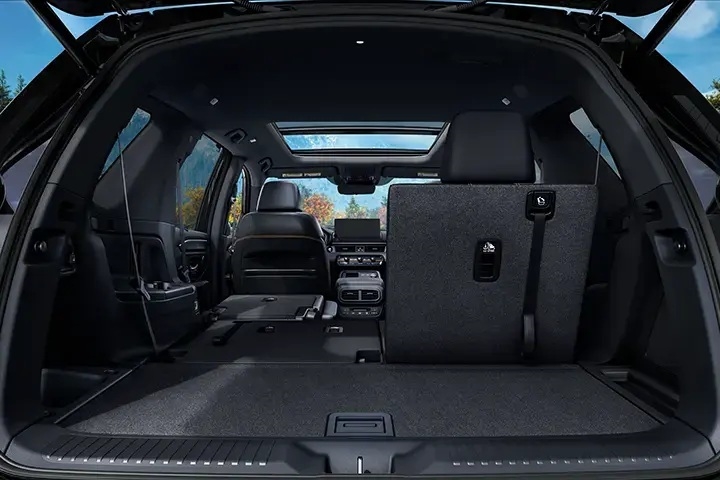

2026 Honda Pilot cargo area behind the raised third row, about 18.6 cubic feet

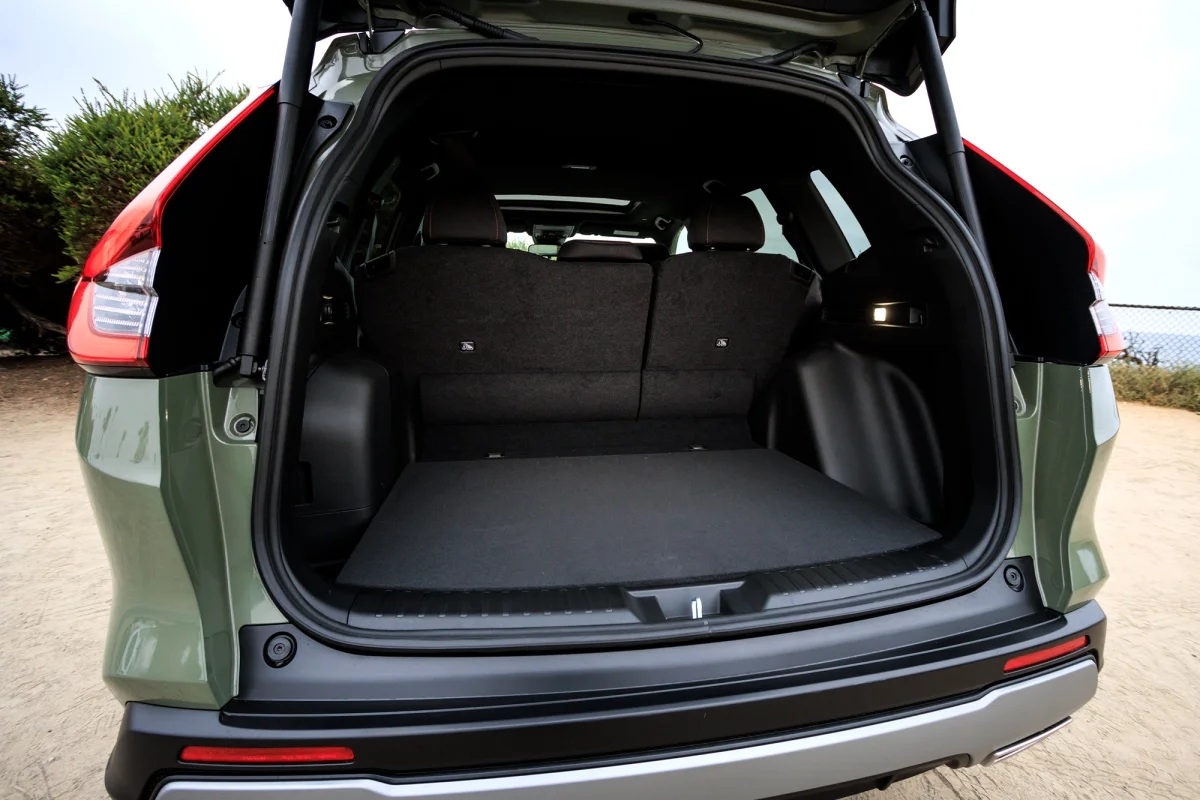

2026 Honda CR-V Hybrid cargo area behind the rear seats, about 36.3 cubic feet

Why the gap is so large

A third row does not appear out of thin air. It occupies the space where a two-row SUV puts its trunk floor. When the Pilot's third row is up, what is left behind it is a narrow well between the seatback and the tailgate. It is deep enough for a week of groceries or four backpacks. It is not deep enough for a stroller plus a hockey bag plus a cooler, which is the exact load that sends people back to the dealership annoyed.

This is why the honest question is not "do I want three rows." It is "how many days a month will row three actually have a person in it." If the answer is four or more, buy the Pilot and enjoy it. If the answer is two, you are paying for a third row and giving up half your trunk to store it.

Worth knowing before you shop: we see both sides of this on the used lot too. If a three-row is the right shape but the 2026 payment is not, it is worth looking at Certified Pre-Owned Hondas and the wider used inventory before you compromise on the number of seats.

Seating: Eight, Seven, or Both

The Pilot's seat count changes by trim, and one popular trim cannot be an eight-seater at all.

Direct answer

Most 2026 Pilots seat eight. The Sport does it with a fixed second-row bench. EX-L, Touring, Elite and Black Edition do it with a removable middle seat, so you can convert them to a seven-seater with captain's chairs whenever you want. The TrailSport seats seven only, with fixed captain's chairs and no eighth seat available. The CR-V Hybrid is a two-row SUV in every trim.

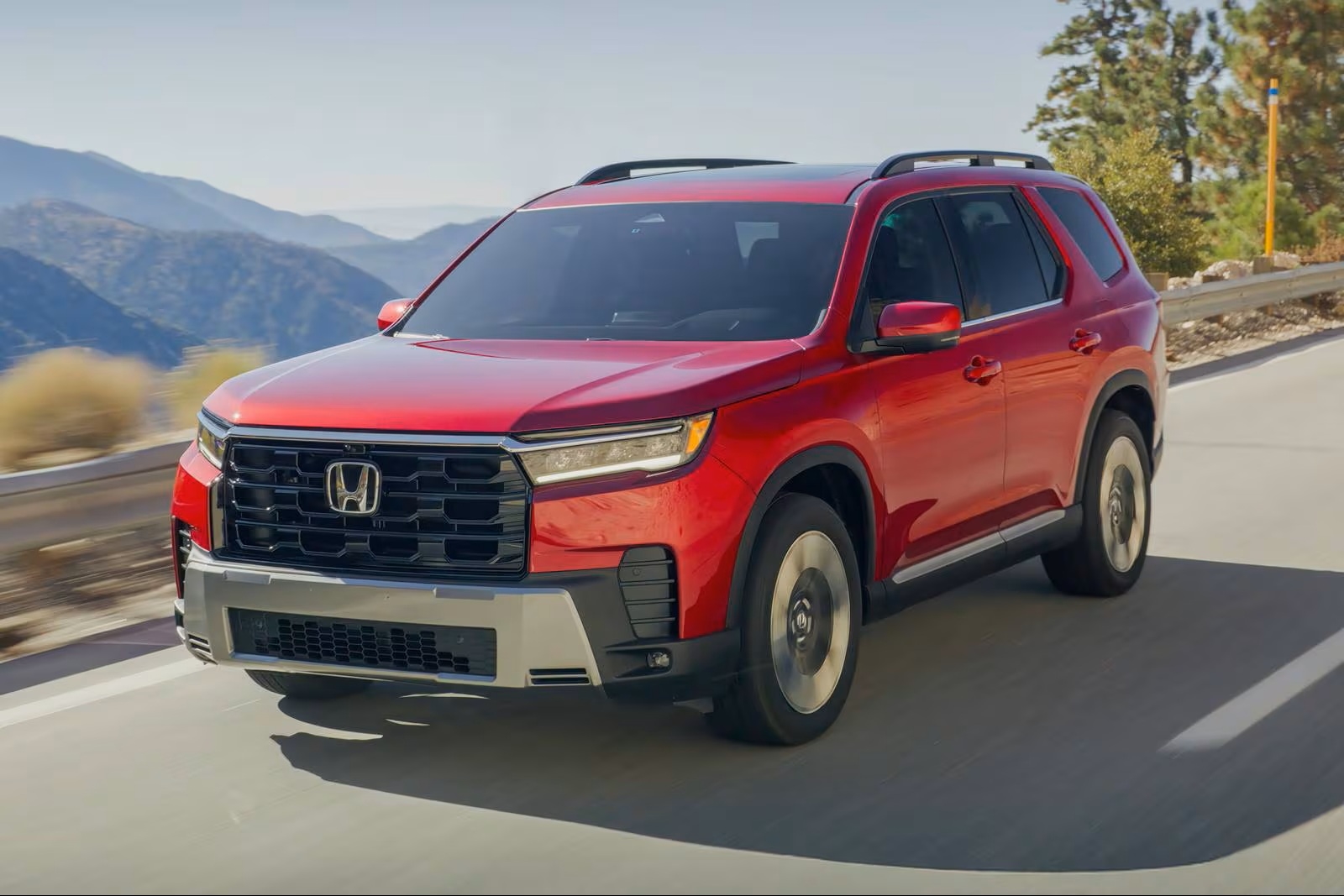

2026 Honda Pilot in front three-quarter view
Trim by trim

The removable middle seat is the feature nobody explains at the curb

On EX-L and above, the middle position of the second-row bench lifts out. Leave it in and you have eight seats for the weekend with the cousins. Take it out and you have captain's chairs with a walk-through to the third row, which is the single easiest way to make a three-row car livable for kids who buckle themselves.

The TrailSport does not offer that flexibility. It ships with fixed captain's chairs, so it is a seven-seater and stays a seven-seater. If you were counting on eight seats and you had your heart set on the TrailSport's look, that is a conflict worth discovering here rather than at delivery.

8 Sport, with a fixed
40/20/40 bench
8 or 7 EX-L, Touring, Elite,
Black Edition
7 TrailSport only,
fixed captain's chairs

Fuel: Here Is the Arithmetic, Not a Slogan

Same assumptions for both vehicles, and every input is shown so you can redo it with your own mileage.

Direct answer

At 12,000 miles a year and $4.2651 per gallon, an all-wheel-drive CR-V Hybrid costs about $1,383.28 a year in fuel and an all-wheel-drive Pilot costs about $2,437.20. That is a gap of $1,053.92 per year, or $5,269.62 over five years. Your real number moves with your mileage, your right foot and the price of gas on the day you fill up.

Scroll the table sideways to see every column

Annual fuel cost at 12,000 miles per year and $4.2651 per gallon
Vehicle EPA combined Gallons per year Fuel cost per year
CR-V Hybrid, front-wheel drive 40 MPG 300.0 $1,279.53
CR-V Hybrid, all-wheel drive 37 MPG 324.3 $1,383.28
CR-V TrailSport Hybrid AWD 35 MPG 342.9 $1,462.32
Pilot, 2WD 22 MPG 545.5 $2,326.42
Pilot, AWD 21 MPG 571.4 $2,437.20
Pilot TrailSport AWD 20 MPG 600.0 $2,559.06

One local detail worth knowing

On the day we pulled these prices, Lake County was the cheapest of the three benchmarks we checked: $4.2651 here, against an Illinois statewide average of $4.3180 and a Chicago metro average of $4.4403. If you commute south and fill up near the city, your Pilot number gets worse than the table shows and your hybrid number gets worse by less, because the hybrid burns fewer gallons to begin with. That is the whole point of a hybrid in stop-and-go traffic.

Does the fuel saving cancel out the price difference?

Not quite, and anyone who tells you it does is selling. Compare the two most common configurations. A CR-V Sport Hybrid AWD is $37,130 plus $1,395 destination, which is $38,525. A Pilot Sport AWD is $44,295 plus $1,495 destination, which is $45,790. The gap is $7,265 before tax, title, license and dealer charges.

Five years of the fuel difference is $5,269.62. So the fuel saving covers roughly 72 percent of the sticker gap over five years. It does not erase it, and it does not account for financing, insurance or resale. What it does mean is that if you were choosing the Pilot only because you assumed the running costs were similar, they are not, and the difference is large enough to matter to a household budget.

Trims and Pricing for 2026

Manufacturer's suggested retail price, with destination shown separately.

Direct answer

The 2026 CR-V Hybrid runs from $35,630 for a Sport Hybrid front-wheel drive to $42,250 for a Sport Touring Hybrid AWD, plus $1,395 destination. The 2026 Pilot runs from $42,195 for a Sport 2WD to $54,995 for a Black Edition, plus $1,495 destination. A loaded CR-V Hybrid and a base Pilot land close to each other, which is where most cross-shopping actually happens.

Scroll the table sideways to see every column

2026 Honda CR-V Hybrid, MSRP and EPA city / highway / combined. Destination $1,395.
Trim MSRP, FWD MSRP, AWD EPA city / hwy / comb
Sport Hybrid $35,630 $37,130 43/36/40 FWD, 40/34/37 AWD
Sport-L Hybrid $38,725 $40,225 43/36/40 FWD, 40/34/37 AWD
TrailSport Hybrid Not offered $38,800 38/33/35
Sport Touring Hybrid Not offered $42,250 40/34/37

Scroll the table sideways to see every column

2026 Honda Pilot, MSRP, EPA and seating. Destination $1,495.
Trim MSRP, 2WD MSRP, AWD EPA city / hwy / comb Seats
Sport $42,195 $44,295 19/27/22 2WD, 19/25/21 AWD 8, fixed bench
EX-L $44,495 $46,595 19/27/22 2WD, 19/25/21 AWD 8 or 7, removable seat
TrailSport Not offered $50,395 18/23/20 7 only
Touring Not offered $51,095 19/25/21 8 or 7, removable seat
Elite Not offered $53,495 19/25/21 8 or 7, removable seat
Black Edition Not offered $54,995 19/25/21 8 or 7, removable seat

All-Wheel Drive, Towing and Winter

Two different systems built for two different jobs.

Direct answer

If you tow, this section ends the debate. An all-wheel-drive Pilot is rated at 5,000 lb and a two-wheel-drive Pilot at 3,500 lb. A CR-V Hybrid is rated at 1,000 lb. There is a wrinkle worth knowing: the non-hybrid gas CR-V is rated at 1,500 lb, so within the CR-V family the gas model out-tows the hybrid.

Scroll the table sideways to see every column

Drivetrain, towing and ground clearance, 2026 CR-V Hybrid and 2026 Pilot
Item 2026 CR-V Hybrid 2026 Pilot
Power 204 hp system output, 247 lb-ft 285 hp at 6,100 rpm, 262 lb-ft at 5,000 rpm
Drivetrain Real Time AWD with Intelligent Control System Second-generation i-VTM4, up to 70 percent of torque to the rear axle
Transmission Two-motor hybrid system 10-speed automatic with Shift-By-Wire
Maximum towing 1,000 lb hybrid, 1,500 lb gas CR-V 3,500 lb 2WD, 5,000 lb AWD including TrailSport
Ground clearance 7.8 in FWD, 8.2 in AWD 7.3 in, 8.3 in TrailSport

The TrailSport badge means two different things

Honda puts a TrailSport badge on both vehicles, and it does not buy you the same thing on each. The Pilot TrailSport gets a genuine lift: 8.3 inches of ground clearance against 7.3 for every other Pilot. The CR-V TrailSport Hybrid gets no lift at all. It sits at 8.2 inches, exactly the same as any other all-wheel-drive CR-V. What it adds is tires and appearance.

That is not a criticism of the CR-V TrailSport. All-terrain tires are the single most useful change you can make for a gravel driveway or an unplowed side street, and 8.2 inches is a perfectly normal number. But if you assumed the badge meant the CR-V had been raised, it has not, and you should hear that from us before you sign.

What Changed for 2026

The Pilot got the bigger update. The CR-V got the more interesting one.

Direct answer

The 2026 Pilot receives a refresh: a 12.3-inch touchscreen standard, a 10.2-inch digital cluster, Google built-in, a power tailgate standard on every trim, standard roof rails, cabin noise cut by 2 to 3 dB, and Post-Collision Braking added across the lineup. The 2026 CR-V adds the new TrailSport Hybrid trim, a standard 9-inch touchscreen, standard wireless Apple CarPlay and Android Auto, and a standard wireless charger.

The Pilot refresh, in plain terms

The screen is the headline, and it should be. Going from the previous display to a 12.3-inch unit with Google built-in changes the daily experience more than any spec sheet line. The quieter cabin matters too. Two to three decibels does not sound like much written down, but on a long stretch of I-94 it is the difference between talking and raising your voice.

The powertrain and i-VTM4 all-wheel-drive system carry over unchanged, which is fine. They were the strong part already.

The CR-V update, in plain terms

The wireless phone connection and wireless charger becoming standard is the change most owners will feel every single day, because it removes the cable from the equation entirely. The TrailSport Hybrid is the news, and it is genuinely new for the CR-V line, with the caveat about ride height covered above.

One point of accuracy: Post-Collision Braking is listed in Honda's 2026 Pilot material. Honda's 2026 CR-V material does not mention it, so we do not claim it for the CR-V. If that feature matters to you, ask us to confirm it against the window sticker of the specific vehicle you are considering.

Safety Ratings

Both earn the government's top overall score. One detail separates them.

Direct answer

Both models include the Honda Sensing suite, but crash-test records depend on the exact body style, drivetrain and test configuration. This guide does not assign either 2026 model a star-rating advantage because the exact current NHTSA records were not verified for every configuration compared here.

Honda Sensing is standard on both, and the feature lists are close enough that we would not choose between these two vehicles on driver assistance alone. Both include collision mitigation braking, forward collision warning, road departure mitigation, lane keeping assist, adaptive cruise control with low speed follow, traffic sign recognition and traffic jam assist.

If a specific safety feature is a deal breaker for you, bring it up before the test drive. We would rather check the window sticker of the exact car with you than have you rely on a general model-year summary, including this one.

See New CR-V and Pilot Inventory Ask Us a Question
Honda Libertyville

Park Them Next to Each Other and Load Your Own Stuff In

Bring the stroller. Bring the hockey bag. Bring the car seats you actually use. Fifteen minutes in our lot with both tailgates open answers this question better than any article can, including this one.

Everyday cargo gap 17.7 cu ft The difference between 36.3 and 18.6 cu ft, all seats up

Load Test, Not a Spec Sheet

Put your gear in both cargo areas before you decide. Numbers on a page are useful. Your own stroller in the well behind row three is conclusive.

Bring the Car Seats

Three across, or captain's chairs with a walk-through. Install them in the Pilot and see which layout your family can live with every morning.

Run Your Own Fuel Math

Tell us your real annual mileage and we will redo the calculation on this page with your number instead of our 12,000-mile example.

Check the Window Sticker

Equipment varies by trim and build. We will confirm the features that matter to you against the sticker of the specific vehicle, not a brochure.

1111 S Milwaukee Ave, Libertyville, IL 60048 (847) 595-5561
Browse New Honda SUVs
Serving Lake County

Comparing the CR-V Hybrid and Pilot in Libertyville, IL

Honda Libertyville is an authorized Honda dealership at 1111 S Milwaukee Ave, Libertyville, IL 60048, part of the Murgado Automotive Group. The dealership sells and services new and pre-owned Honda vehicles for families throughout Lake County, Illinois, including the CR-V Hybrid and the Pilot compared on this page.

We are on Route 45 at Milwaukee Avenue, with access from I-94 and Route 176. Lake County shoppers cross-shop these two constantly, and the answer is almost always decided by how often the third row carries a person rather than by anything on the window sticker.

Libertyville Vernon Hills Mundelein Gurnee Lake Forest Waukegan Grayslake Lake Bluff Highland Park Lindenhurst Route 45 / Milwaukee Ave I-94 Corridor Route 176 Lake County, IL

Frequently Asked Questions

The questions Lake County families actually ask when they cross-shop these two.

Which has more everyday cargo space, the CR-V Hybrid or the Pilot?

The CR-V Hybrid, by a wide margin, as long as the Pilot's third row is up. The CR-V Hybrid holds 36.3 cu ft behind its rear seats. A Pilot holds 18.6 cu ft behind a raised third row. Fold the Pilot's third row and it goes to 48.5 cu ft and takes the lead.

How much will I really save on gas with the CR-V Hybrid?

Comparing all-wheel drive to all-wheel drive at 12,000 miles a year and $4.2651 per gallon, about $1,053.92 a year, or $5,269.62 over five years. The CR-V Hybrid AWD is rated 37 MPG combined and the Pilot AWD 21 MPG combined. Your result depends on your mileage and on fuel prices, which move constantly.

Can the CR-V Hybrid tow a small trailer?

It is rated at 1,000 lb, which covers a small utility trailer and not much more. If you tow anything meaningful, the Pilot is the answer: 3,500 lb with two-wheel drive and 5,000 lb with all-wheel drive on every trim. One detail that surprises people: the non-hybrid gas CR-V is rated at 1,500 lb, so inside the CR-V family the gas model tows more than the hybrid.

Does the CR-V TrailSport Hybrid sit higher than a regular CR-V?

No. The CR-V TrailSport Hybrid has 8.2 inches of ground clearance, the same as any other all-wheel-drive CR-V. The TrailSport package on the CR-V is tires and appearance, not a lift. The Pilot TrailSport is different: it does get a lift, at 8.3 inches against 7.3 inches for the rest of the Pilot lineup. Same badge, two different engineering decisions.

How many people does a 2026 Pilot seat?

It depends on the trim. Sport seats eight with a fixed 40/20/40 second-row bench. EX-L, Touring, Elite and Black Edition seat eight with a removable middle seat, so you can convert them to seven with captain's chairs. TrailSport seats seven only, with fixed captain's chairs and no eight-seat option.

Which one is safer?

Honda Sensing is standard on both models. Crash-test results can vary by body style, drivetrain and test configuration, so this guide does not claim that one 2026 model has a verified star-rating advantage over the other. Check the current NHTSA record for the exact vehicle you are considering.

What is new on each vehicle for 2026?

The Pilot is refreshed: 12.3-inch touchscreen standard, 10.2-inch digital cluster, Google built-in, power tailgate and roof rails standard on all trims, cabin noise reduced by 2 to 3 dB, and Post-Collision Braking added across the range. The CR-V adds the TrailSport Hybrid trim, a standard 9-inch touchscreen, standard wireless CarPlay and Android Auto, and a standard wireless charger. Honda's 2026 CR-V material does not list Post-Collision Braking, so we do not claim it for the CR-V.

Is a loaded CR-V Hybrid or a base Pilot the better buy?

That is exactly where the cross-shop lands. A Sport Touring Hybrid AWD is $42,250 plus $1,395 destination. A Pilot Sport 2WD is $42,195 plus $1,495 destination. For similar money you choose between a far better equipped two-row hybrid that costs about half as much to fuel, or a bigger, plainer three-row that can carry eight people and tow. There is no universal right answer, only the right answer for how you use the car.

Sources and notes

  • Vehicle specifications, EPA ratings, pricing, seating configurations and 2026 model year changes: Honda newsroom releases for the 2026 CR-V and the 2026 Pilot.
  • Cargo figures are SAE J1100 Standard-column values. Honda also publishes a Max column measured to the roof, which produces larger numbers and is not used on this page.
  • Safety equipment: official 2026 Honda CR-V and Pilot specifications.
  • Fuel price: AAA Gas Prices, Lake County, Illinois average of $4.2651 per gallon, retrieved 08/17/2026 for prices dated 08/16/2026. Illinois statewide $4.3180 and Chicago metro $4.4403 on the same date. Fuel prices change daily and any calculation on this page will drift.
  • MSRP figures exclude destination, taxes, title, license and dealer charges, and are not an offer for sale. Destination is $1,395 on the CR-V and $1,495 on the Pilot.
  • Equipment availability varies by trim and by individual vehicle. Confirm any feature against the window sticker of the specific vehicle before purchase.
