2026 Honda Pilot Towing Guide: 5,000 Pounds, i-VTM4, and What Towing Does to Your Service Schedule
An all-wheel-drive 2026 Pilot is rated to tow 5,000 lb. A two-wheel-drive Pilot is rated at 3,500 lb. Most owners know that part. What almost nobody is told at delivery is that Honda's own maintenance footnotes change when you tow: one footnote puts a 60,000-mile ceiling on the spark plug, timing belt and valve clearance service, and another says trailer towing requires rear differential fluid changes more often than the Maintenance Minder asks for. Both are Honda's words, and both are quoted on this page.
This guide summarizes Honda's published maintenance information for the 2026 Pilot. Your vehicle's own Maintenance Minder display and the owner's manual that came with your specific vehicle are the authority for your Pilot. Towing capacity figures assume a properly equipped vehicle and correct trailer loading. Nothing here is a service quote or an offer.
First, an Open Recall on Some 2026 Pilots
If you tow, this one is directly relevant to you, so it goes at the top rather than buried at the bottom.
Rear subframe bolts on certain 2026 Pilot and Passport vehicles
"The rear subframe bolts may have been tightened improperly."
"Loose rear subframe bolts can lead to a loss of vehicle stability or rear subframe detachment."
The rear subframe carries the rear suspension and, on all-wheel-drive vehicles, the rear differential. That is exactly the part of the car a trailer loads hardest. If you own a 2026 Pilot and you tow, do not wait for the letter. Check your VIN, then have it inspected.
You can look up your VIN on the NHTSA recall lookup, or call Honda customer service at 1-888-234-2138. Recall inspection and repair is performed at no charge. To book the visit with us, use online service scheduling and note the recall in the comments so we can confirm parts before you arrive.

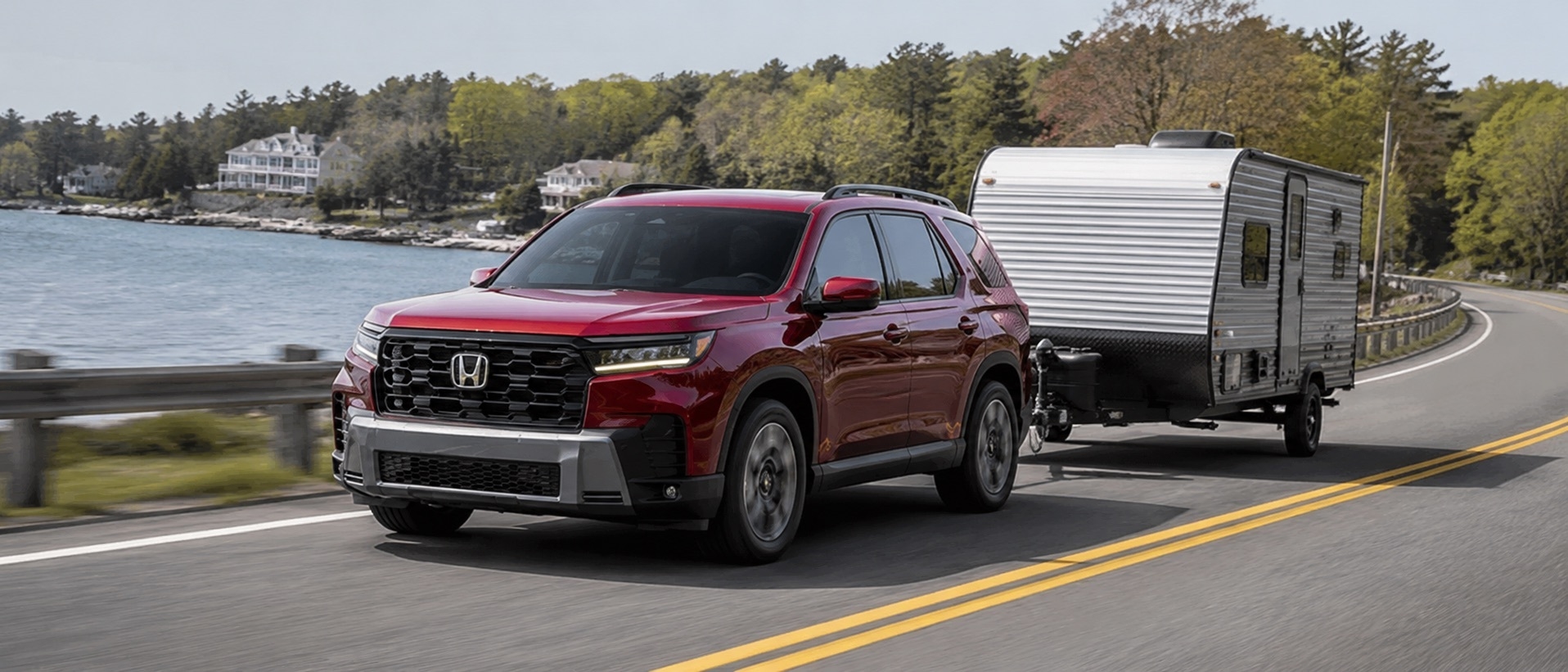

What a 2026 Pilot Can Actually Tow
The number depends on the drivetrain, not on how expensive the trim is.
Every all-wheel-drive 2026 Pilot is rated at 5,000 lb, including the TrailSport. Two-wheel-drive Pilots are rated at 3,500 lb, and two-wheel drive is only offered on Sport and EX-L. Paying more for a Touring or an Elite does not raise the rating. Choosing all-wheel drive does. Ratings assume a properly equipped vehicle and a correctly loaded trailer.
Scroll the table sideways to see every column
| Trim | 2WD rating | AWD rating | Notes |
|---|---|---|---|
| Sport | 3,500 lb | 5,000 lb | Both drivetrains offered |
| EX-L | 3,500 lb | 5,000 lb | Both drivetrains offered |
| TrailSport | Not offered | 5,000 lb | Adds Trail Torque Logic to i-VTM4 |
| Touring | Not offered | 5,000 lb | Same rating as a Sport AWD |
| Elite | Not offered | 5,000 lb | Same rating as a Sport AWD |
| Black Edition | Not offered | 5,000 lb | Same rating as a Sport AWD |
What 5,000 lb covers around here
In Lake County the honest use cases are a runabout or a pontoon coming off a Chain O'Lakes ramp, a small camper, a utility trailer with a tractor or a couple of dirt bikes on it, or a car hauler that is empty. The 5,000 lb figure has to cover the trailer and its contents together, which is where people get caught out. A boat that weighs 3,200 lb dry is not a 3,200 lb tow once the trailer, the fuel, the batteries and the gear are on it.
If you are shopping and towing is the reason, the drivetrain choice is the whole decision. Ask us to check the towing equipment on the specific vehicle before you commit, and browse new Pilot inventory with all-wheel drive in mind.

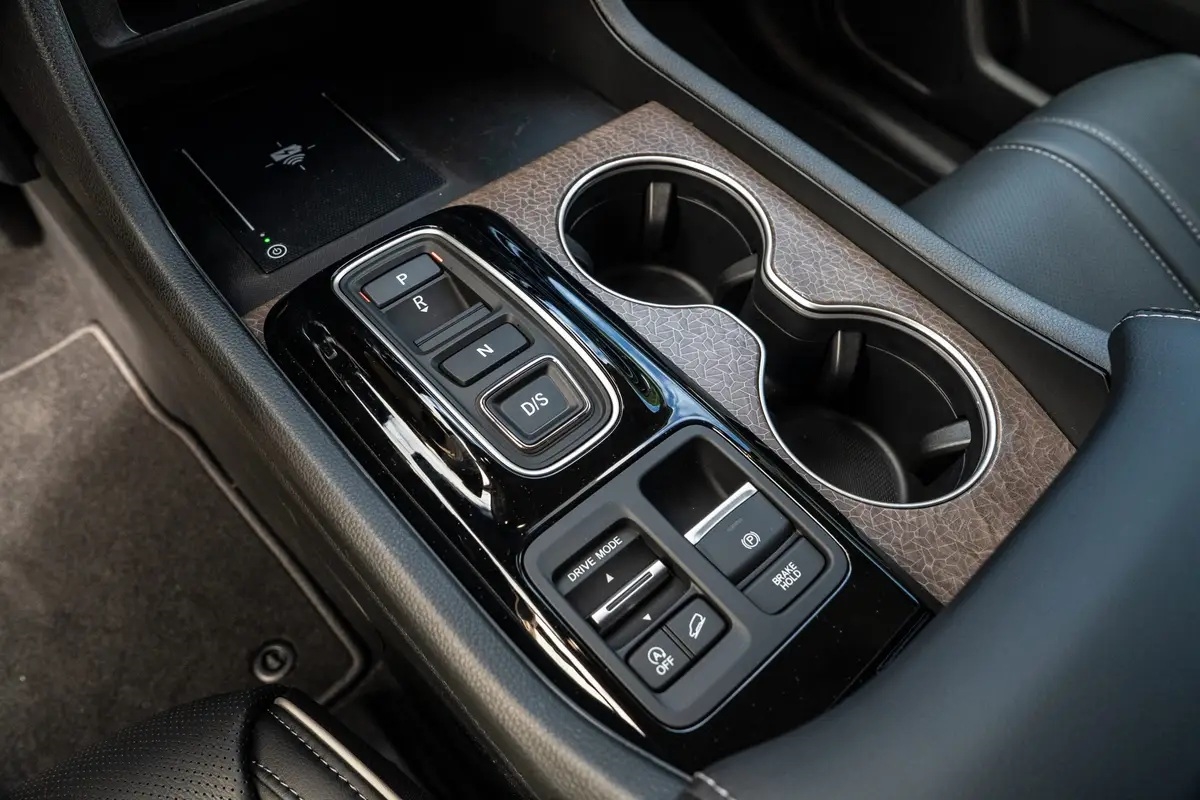

i-VTM4 and Why It Matters With a Trailer Behind You
A ramp, a wet boat launch and a merge onto the Tri-State all ask the same question of an all-wheel-drive system.
The 2026 Pilot uses second-generation i-VTM4, which can send up to 70 percent of engine torque to the rear axle and then distribute it between the left and right rear wheels. Combined with the 3.5L V6's 285 hp and 262 lb-ft and a 10-speed automatic with Shift-By-Wire, that is what lets an all-wheel-drive Pilot pull 1,500 lb more than a two-wheel-drive one. TrailSport adds Trail Torque Logic.

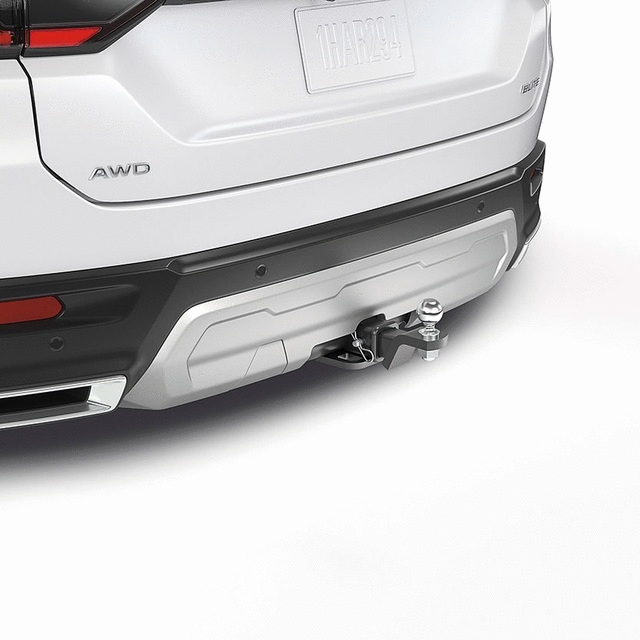

A loaded trailer moves weight to the back of the vehicle
Hitch a trailer and the tongue pushes down behind the rear axle, which lifts load off the front tires. A front-biased system in that situation is trying to pull the whole train with the tires that just got lighter. Being able to send up to 70 percent of torque rearward, where the weight now is, is exactly the right answer.
The wet concrete of a boat ramp is the honest test. That is the moment where torque going to the correct wheel matters more than horsepower, and it is why owners who launch boats notice the difference between drivetrains in a way that a highway merge never shows them.
to the rear axle
Shift-By-Wire
3.5L V6
The Two Services Towing Actually Changes
Straight from Honda's own maintenance footnotes, quoted rather than paraphrased.
Towing changes two things in Honda's published maintenance information. It puts a 60,000-mile ceiling on the service that covers spark plugs, the timing belt and water pump inspection, and valve clearance. And it makes rear differential fluid a more frequent item than the Maintenance Minder will ask for on its own. Everything else stays on the Maintenance Minder.
Footnote one: spark plugs, timing belt, valve clearance
"If you drive regularly in very high temperatures (over 110°F), in very low temperatures (under -20°F), or towing a trailer, replace every 60,000 miles."
Read the three conditions carefully, because only one of them is realistic in Lake County. We do not see sustained temperatures over 110°F here, and while we certainly get below -20°F wind chills, the criterion is ambient temperature rather than wind chill and it says "regularly." Towing is the clause that applies to Libertyville owners. If you tow regularly, Honda has given you a mileage where that service should happen. If you do not tow, Honda has not given you a mileage at all, and any shop that quotes you one is guessing.
Footnote two: rear differential fluid
"Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than recommended by the Maintenance Minder."
That is an unusual admission for a manufacturer to print, and it is worth taking seriously. Honda is saying its own algorithm does not fully account for what towing does to the fluid in the rear differential. Shear stress is what happens when fluid is repeatedly squeezed and sheared between loaded gear teeth. It degrades the fluid faster than mileage alone predicts.
Honda does not attach a number to this one, and neither will we. What we do instead is practical: if you tell your advisor how you use the vehicle, we can pull a rear differential fluid sample condition check into a visit you are already making, and make the decision on evidence rather than on a number somebody invented.
We are not going to re-explain the Minder codes here
If you want the full A and B code and sub-code breakdown, we have already written it and there is no reason to make you read it twice. Start with our Honda Maintenance Minder codes guide, which decodes every main code and sub-code and covers the reset procedure. If you want the wider picture by model, see the Honda maintenance schedule guide. If your dash is showing B1 right now and you want to know what that visit involves, read what B1 service includes.
This page has one job those three do not: explaining what changes when there is a trailer on the back.
Your Pilot Has a Timing Belt, Not a Timing Chain
Most owners assume the opposite, and the proof is in Honda's own service definition.
The 3.5L V6 in the 2026 Pilot uses a timing belt. Honda's own maintenance sub-item text says "Replace timing belt and inspect water pump," which settles it. A belt is a wear item with a service life. A chain is generally not. This is the single most useful thing a Pilot owner can learn about long-term ownership cost, and it is the item the towing footnote attaches its 60,000-mile ceiling to.
Here is why this matters for planning. Because the belt, the plugs and the valve clearance check are bundled into one maintenance item, they get done in one visit. That is efficient, and it is also a bigger single bill than an oil change, so it is worth knowing it is coming rather than being surprised by it.
The water pump inspection in the same item is not filler. On a belt-driven engine, the pump is behind the same covers, so inspecting or replacing it while the belt is off is the cheapest it will ever be. If your Pilot is in for the belt and the pump shows wear, doing both at once saves a second teardown later.
What we will not do is quote you a mileage for a Pilot that does not tow. Honda publishes no fixed mileage for this item on Maintenance Minder vehicles. The 60,000-mile figure exists only inside the towing and extreme temperature footnote. Sites that print "Honda timing belt at 105,000 miles" as if it were a Honda specification are extrapolating from older models.
Fluids, Capacities and What Honda Actually Publishes as an Interval
This table is the credibility test for any Honda service page. Read the right-hand column carefully.
On a Maintenance Minder vehicle, Honda publishes exactly two hard intervals: brake fluid every three years, and engine oil at least every twelve months. There is no published mileage for spark plugs, coolant, transmission fluid, rear differential fluid, filters or tire rotation. The Maintenance Minder calls them when the vehicle's own data says so. Any specific mileage you read for those items on a dealer blog is somebody's estimate, not Honda's number.
Scroll the table sideways to see every column
| Item | Honda specification | Capacity | Published interval |
|---|---|---|---|
| Engine oil | 0W-20 | 5.8 US qt with filter | At least every 12 months otherwise on the Maintenance Minder |
| Brake fluid | Honda HD DOT 3 | Not published | Every 3 years the one true time-based item |
| Rear differential fluid | Honda DPSF-II | 1.76 US qt | Maintenance Minder more often when towing, per Honda's footnote |
| Transmission fluid | Honda ATF-TYPE 2.0 | 4.4 US qt, AWD | Maintenance Minder no fixed mileage published |
| Engine coolant | Honda Type 2 | 2.03 US gal | Maintenance Minder no fixed mileage published |
| Spark plugs, timing belt, valve clearance | Bundled as one maintenance item | Not applicable | Maintenance Minder 60,000 mi ceiling if you tow regularly |
Why we are being this pedantic about mileages
Because it is the difference between a service department you can trust and one you cannot. If a page tells you "Honda says change the rear differential fluid at 30,000 miles," that page is inventing a Honda position. Honda's actual position is that the vehicle decides, and that towing means it should happen more often than the vehicle asks. Those are different statements, and only one of them is true.
The practical version for a towing owner sounds like this: keep an eye on the Maintenance Minder, tell your advisor you tow, and let the driveline fluids be checked on condition at visits you were making anyway. That is cheaper than a schedule somebody invented and safer than ignoring the question.
What Counts as Severe Driving, and How Much of It Applies Here
Honda's own list, mapped honestly onto Lake County roads.
Honda's definition of severe service includes "trailer towing, driving with a car-top carrier, or driving in mountainous conditions" and "driving on muddy, dusty, or de-iced roads." On a Maintenance Minder vehicle those conditions are absorbed automatically by the system, which is why there is no separate severe schedule to follow. The two towing footnotes above are the exception, because they sit outside what the algorithm handles.
Conditions that genuinely apply in Lake County
- De-iced roads. Salt season here runs most of the winter. Honda names de-iced roads explicitly.
- Short trips in freezing weather. Honda's list calls out trips under 10 miles in freezing temperatures, which describes a January school run exactly.
- Stop-and-go traffic. Milwaukee Avenue at 5 p.m. and the Tri-State when it backs up both qualify as extended low-speed running.
- Trailer towing. Chain O'Lakes boat season, plus every utility trailer that gets hooked up in spring.
Conditions that mostly do not apply here
- Sustained heat over 110°F. Not a Lake County condition. We are not going to pretend it is in order to sell a service.
- Mountainous low-speed driving. Northern Illinois does not have the grades this clause was written for.
- Heavy dust. Relevant if you run gravel roads regularly, and not much otherwise.
- Commercial-level idling. Applies to work vehicles, rarely to a family Pilot.
Being clear about which conditions do not apply is the point. A service department that tells you everything is severe is describing its own revenue, not your vehicle. Of Honda's severe list, towing and salt are the two that genuinely shape how a Libertyville Pilot ages.
You Do Not Have to Service Your Honda at a Honda Dealer
Honda's words, printed here because you deserve to hear them from us rather than find them yourself.
Servicing your Pilot somewhere other than a Honda dealer does not void your warranty. Honda states this plainly. What matters is that the maintenance is actually performed and that you can prove it, which means keeping receipts that show the date and the odometer reading.
Honda's position, word for word
"However, service at an authorized Honda automobile dealer is not mandatory for continued warranty coverage."
Two practical notes that sit alongside that sentence. Parts that fail because required maintenance was not performed on time are not covered, so skipping the service is a real risk in a way that choosing a different shop is not. And keep your repair orders. A folder of receipts with dates and odometer readings is the entire proof burden.
We would rather earn the work by being useful than imply you are obligated to bring it here. If you do bring it here, current offers live on the service specials page, and you can book online whenever suits you.
Tell Your Advisor You Tow. It Changes What We Look At.
Two sentences at the service drive is all it takes: what you pull, and roughly how often. From there we can check the driveline fluids on condition, confirm your recall status, and stop guessing at intervals Honda never published.
Recall Check First
We confirm open recalls by VIN before anything else. Recall 26V424000 work is performed at no charge to the owner.
Driveline Fluids on Condition
Rear differential and transmission fluid assessed by condition and by how you use the vehicle, not by a number we made up.
Documented Every Visit
Date and odometer on every repair order. That paperwork is what protects your warranty, wherever the work is done.
Book Before Boat Season
Spring is when every trailer in Lake County comes out of storage at once. A pre-season appointment beats a July wait.
Service hours: Monday to Thursday 6:30am to 7:00pm | Friday 6:30am to 6:30pm | Saturday 7:30am to 4:00pm | Sunday closed
Schedule Pilot ServiceHonda Pilot Towing Service in Libertyville, IL
Honda Libertyville is an authorized Honda dealership and service center at 1111 S Milwaukee Ave, Libertyville, IL 60048, part of the Murgado Automotive Group. The service department performs factory-specified maintenance, recall work and genuine Honda parts replacement for Pilot owners throughout Lake County, Illinois.
We are on Route 45 at Milwaukee Avenue with access from I-94 and Route 176. Between Chain O'Lakes boat traffic, Tri-State commuting and a salt season that runs most of the winter, Pilots around here work harder than the mileage on the odometer suggests.
Frequently Asked Questions
Towing and service questions we actually get asked at the Libertyville service drive.
How much can a 2026 Honda Pilot tow?
5,000 lb with all-wheel drive on every trim, including TrailSport, and 3,500 lb with two-wheel drive. Two-wheel drive is only offered on Sport and EX-L. The rating covers the trailer plus everything loaded in it, and it assumes a properly equipped vehicle.
Does towing change my Pilot's maintenance schedule?
Yes, in two specific places. Honda's footnote for the service covering spark plugs, timing belt and valve clearance says to "replace every 60,000 miles" if you regularly tow a trailer or drive in extreme temperatures. A second footnote says trailer towing "requires differential fluid changes more frequently than recommended by the Maintenance Minder." Everything else stays on the Maintenance Minder.
Does the 2026 Pilot have a timing belt or a timing chain?
A timing belt. Honda's own maintenance item text reads "Replace timing belt and inspect water pump," which is definitive. It surprises most owners, because plenty of modern engines use chains. A belt is a scheduled wear item, so it is worth planning for, and the water pump gets inspected at the same time because it sits behind the same covers.
How often should I change the rear differential fluid if I tow?
Honda does not publish a mileage, and we will not invent one. What Honda does say is that towing puts higher shear stress on the fluid and that this "requires differential fluid changes more frequently than recommended by the Maintenance Minder." The practical approach is to tell your advisor you tow so the fluid gets assessed on condition during visits you are already making. The Pilot's rear differential holds 1.76 US qt of Honda DPSF-II.
What mileage does Honda give for spark plugs, coolant or transmission fluid?
None. On Maintenance Minder vehicles Honda publishes no fixed mileage for spark plugs, coolant, transmission fluid, rear differential fluid, filters or tire rotation. The system calls each item based on how the vehicle has actually been driven. There are only two hard intervals: brake fluid every three years, and engine oil at least every twelve months. If you see a specific mileage quoted for the other items, it is an estimate, not a Honda figure.
Do I have to service my Pilot at a Honda dealer to keep my warranty?
No. Honda states it directly: "However, service at an authorized Honda automobile dealer is not mandatory for continued warranty coverage." What matters is that required maintenance is actually performed and that you keep proof. Save your repair orders with the date and odometer reading on them. Parts that fail because maintenance was skipped are a different matter and may not be covered.
Is there an open recall on the 2026 Pilot?
Yes, on certain 2026 Pilot and Passport vehicles. NHTSA recall 26V424000 states that "The rear subframe bolts may have been tightened improperly," and that "Loose rear subframe bolts can lead to a loss of vehicle stability or rear subframe detachment." Dealers inspect and replace the bolts free of charge, and owner letters were expected 08/24/2026. Not every 2026 Pilot is affected, so check your VIN at nhtsa.gov/recalls or call Honda at 1-888-234-2138.
What counts as severe driving for a Pilot in Lake County?
From Honda's own severe conditions list, the ones that genuinely apply here are trailer towing, driving on de-iced roads, short trips in freezing temperatures, and extended stop-and-go driving. The ones that mostly do not apply are sustained heat over 110 degrees and mountainous low-speed driving. On a Maintenance Minder vehicle the system absorbs these conditions automatically, which is why there is no separate severe schedule to follow, with the towing footnotes above as the exception.
Sources and notes
- Towing capacity, powertrain output, i-VTM4 behaviour and trim availability: Honda newsroom, 2026 Pilot specifications.
- Maintenance item definitions and the two footnotes quoted on this page: Honda Maintenance Minder documentation. Both footnotes are reproduced verbatim rather than paraphrased.
- Fluid specifications and capacities: 2026 Honda Pilot owner's manual. Capacities are listed for reference and are not a do-it-yourself instruction.
- Warranty statement: Honda warranty information, quoted verbatim. Honda also permits maintenance to be performed elsewhere and recommends keeping repair orders showing date and odometer.
- Recall information: NHTSA recall 26V424000, covering certain 2026 Pilot and Passport vehicles. Recall applicability is determined by VIN. Owner letters were expected 08/24/2026. Honda customer service 1-888-234-2138.
- Honda publishes no fixed mileage for spark plugs, coolant, transmission fluid, rear differential fluid, filters or tire rotation on Maintenance Minder vehicles. The only fixed intervals are brake fluid every three years and engine oil at least every twelve months. No other mileage figure appears on this page except the 60,000-mile towing ceiling, which is Honda's own.
- Your vehicle's Maintenance Minder display and your own owner's manual are the authority for your specific Pilot.
